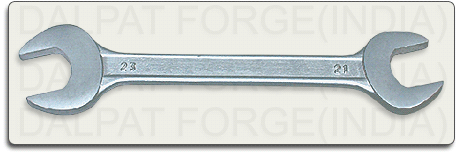

| | Recessed
Panel | | | Head
Set at 15° Angle | |
| Carbon
Steel/ Chrome Vanadium | |
| Duly
Hardened and Tempered |  |
Nickle Chrome Plated |
| MM |
S.A.E |
Length
(MM) | Weight
(Grams) Approx. | |
6X7 |
1/4X5/16 |
85 |
15 |
| 8X9 |
5/16X11/32 |
102 |
20 |
| |
5/16X3/8 |
102 |
20 |
| 8X10 |
|
102 |
20 |
| 10X11 |
3/8X7/16 |
112 |
30 |
| 10X13 |
|
120 |
35 |
| 12X13 |
7/16X1/2 |
129 |
45 |
| 14X15 |
1/2X9/16 |
148 |
55 |
| 13X17 |
|
158 |
85 |
| 14X17 |
9/16X5/8 |
160 |
90 |
| 16X17 |
19/32X11/16 |
160 |
90 |
| 17X19 |
5/8X3/4 |
182 |
115 |
| 18X19 |
|
182 |
115 |
| 19X22 |
3/4X7/8 |
200 |
145 |
| 20X22 |
25/32X7/8 |
200 |
145 |
| 21X23 |
|
200 |
145 |
| 22X24 |
7/8X15/16 |
212 |
180 |
| 24X26 |
15/16X1 |
225 |
225 |
| 24X27 |
|
225 |
225 |
| 25X28 |
1X1.1/8 |
236 |
260 |
| 27X32 |
1.1/16X1.1/4 |
250 |
405 |
| 30X32 |
1.1/8X1.1/4 |
250 |
400 |
|  |
| | |
| MM |
Set
In S.A.E | Weight
(Grams) Approx. | |
50S |
1/4X5/16,3/8X7/16,1/2X9/16,19/32X11/16,5/8X3/4 |
305 |
| 51S |
5/16X11/32,3/8X7/16,1/2X9/16,19/32X11/16,5/8X3/4 |
310 |
| 60S |
1/4X5/16,3/8X7/16,1/2X9/16,19/32X11/16,5/8X3/4,25/32X7/8 |
450 |
| 61S |
5/16X11/32,3/8X7/16,1/2X9/16,19/32X11/16,5/8X3/4,25/32X7/8 |
455 |
| | |
| MM |
Set
In MM | Weight
(Grams) Approx. | |
60M |
6X7,8X9,10X11,14X15,16X17,18X19 |
325 |
| 61M |
6X7,8X9,10X11,12X13,14X15,16X17 |
255 |
| 62M |
8X9,10X11,12X13,14X15,16X17,18X19 |
355 |
| 70M |
6X7,8X9,10X11,12X13,14X15,16X17,18X19 |
370 |
| 80M |
6X7,8X9,10X11,12X13,14X15,16X17,18X19,20X22 |
515 |
| 100M |
6X7,8X9,10X11,12X13,14X15,16X17,18X19,20X22,21X23,24X27 |
885 |
| 101M |
6X7,8X9,10X11,14X15,16X17,18X19,20X22,24X27,30X32 |
1140 |
| 120M |
6X7,8X9,10X11,14X15,16X17,18X19,20X22,21X23,24X27,25X28,30X32 |
1550 |
| 121M | 6X7,8X9,10X11,14X15,16X17,18X19,20X22,21X23,24X27,25X28,30X32 |
1545 |
| | |
Note: Finish to order
Matt Finish, Auto Black, Head Polished. | | |
|

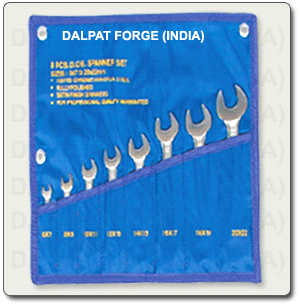

Packing to order-bulk or individual Carton or Clip or Pouch/Wallet/Skin/Shrink/Blister/Window
Box. | | | | | |
